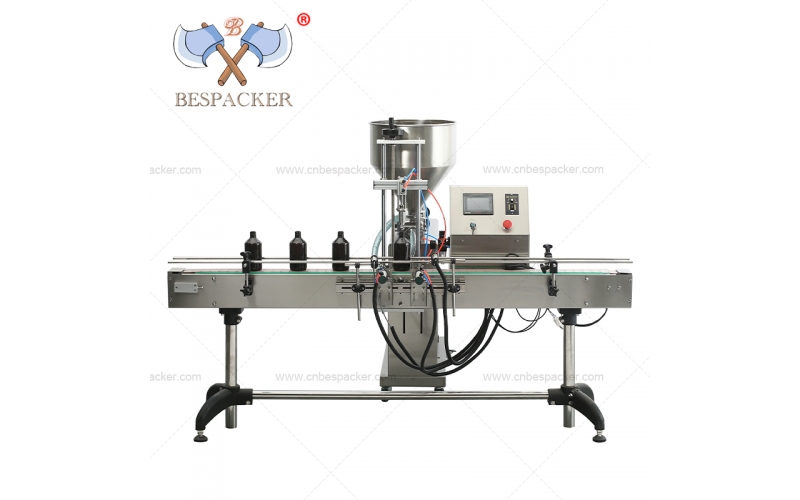

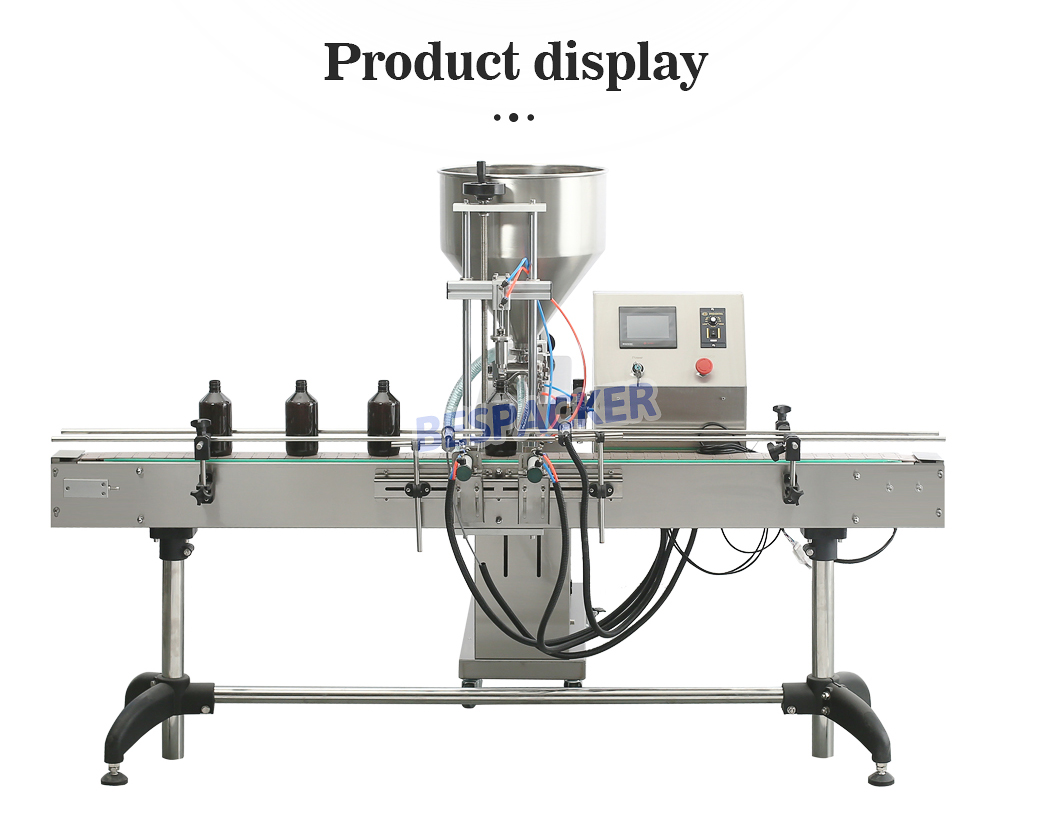

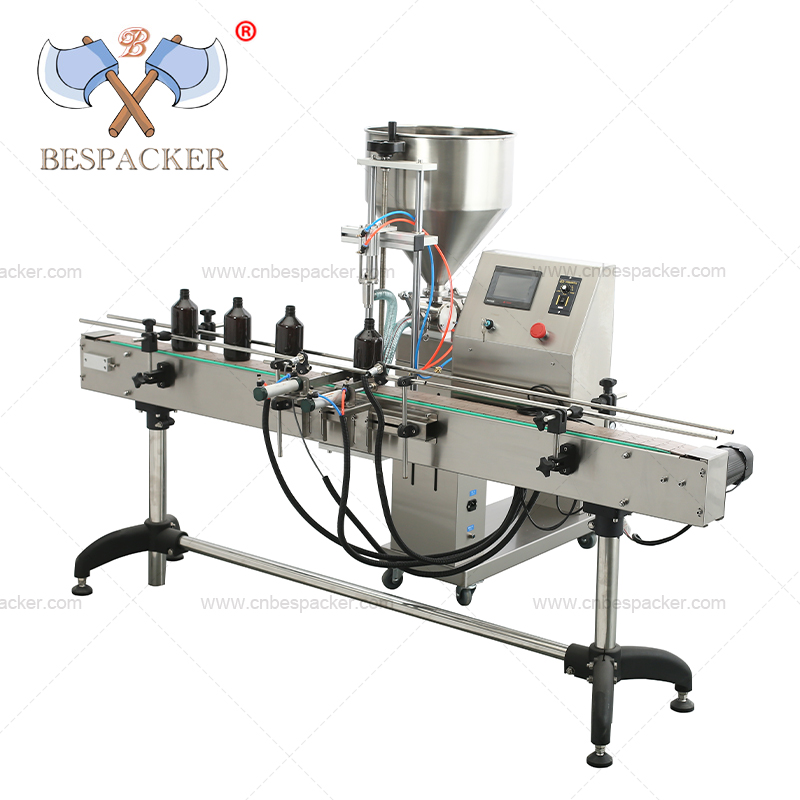

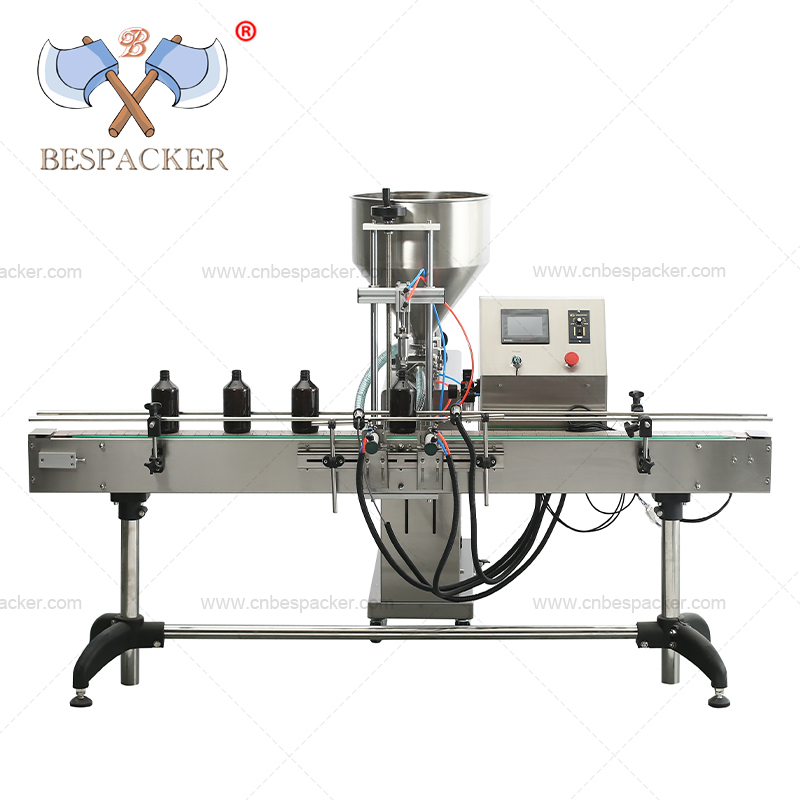

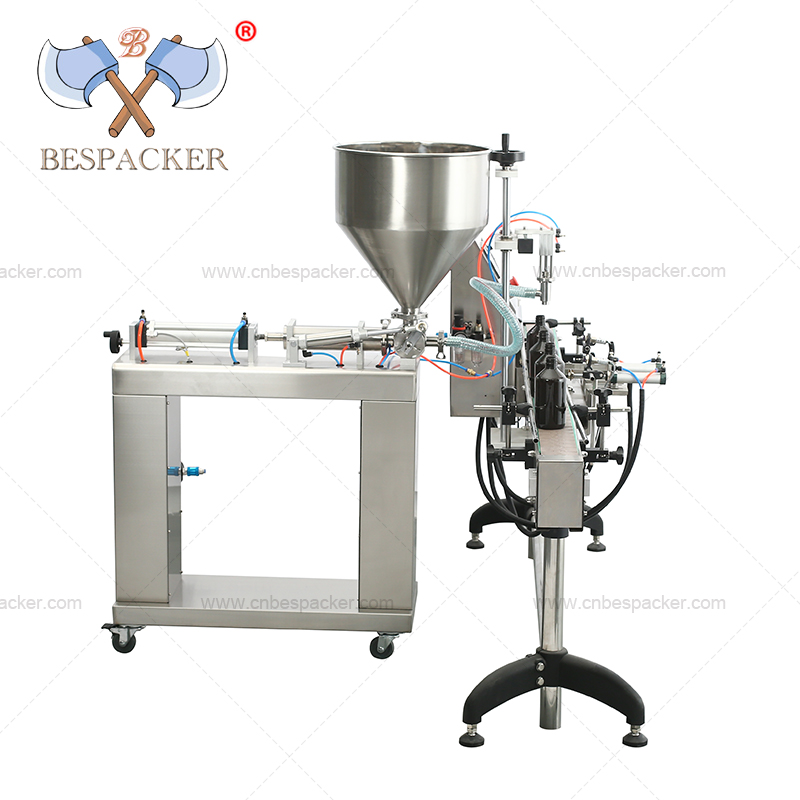

Bespacker GSLD-1000A Auto simple paste filling machine

Find best packing machines by genuine supplier of China - Zhejiang Bespacker Machine Co.,Ltd.

关闭

Enter your details and submit

We'll aim to get back to your with a quote within 24hrs

Bespacker machine Manufacturers

Model	GSLD-1000A（single head）
Voltage	110V/220V 50/60HZ
Power	200W

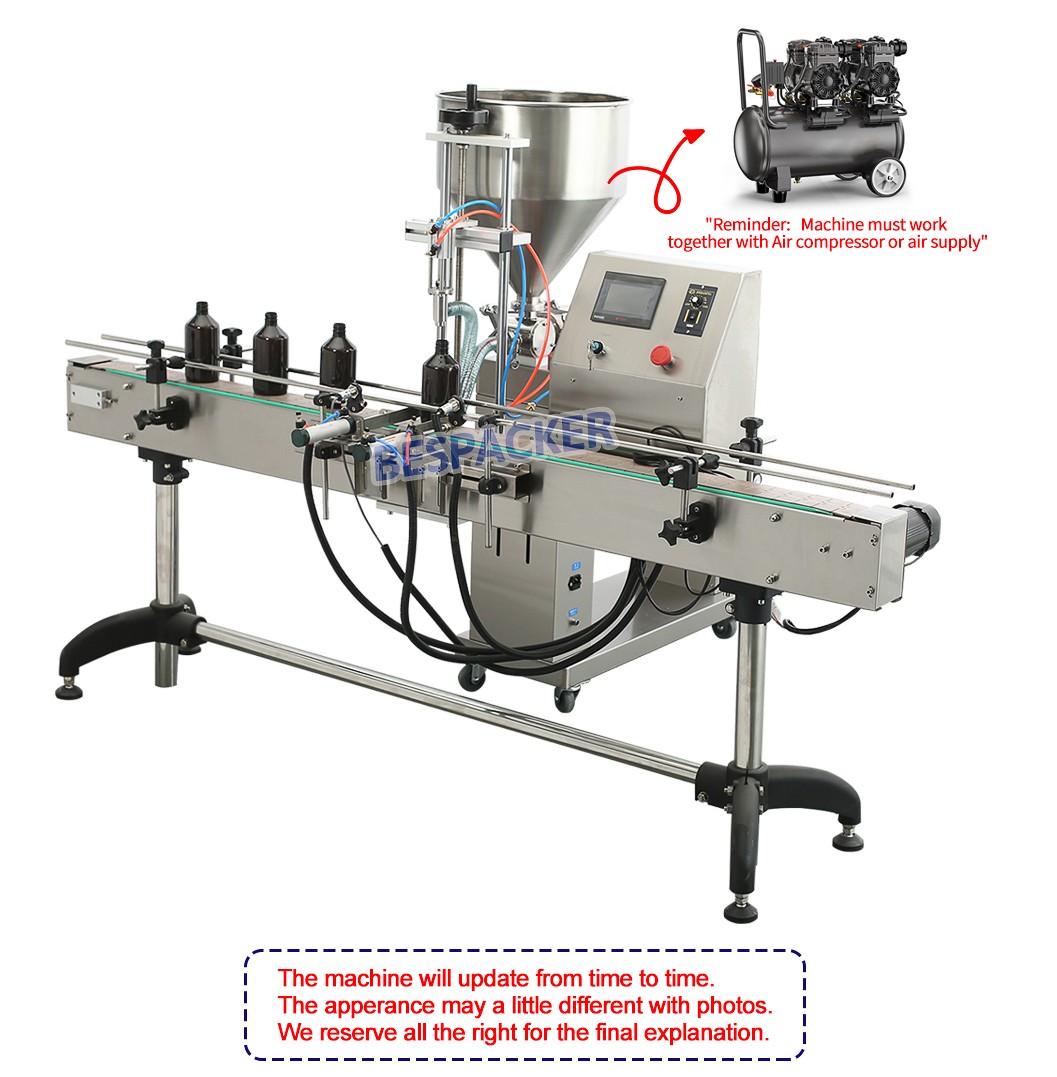

Air pressure	0.4-0.6MPA
Filling Speed	200-1000BPH
Dimension	212 85 142CM
Weight	200KG
Filling Range	10-100ml,30-300ml,50-500ml,250-2500ml,500-5000ml

Bespacker machine Manufacturers

Precise metering control.
Filling machine with fixed flow channel parameters, control the filling time to achieve different measurement of filling.
A. Pneumatic valve filling precise time can be set to 0.01 seconds, the measurement accuracy can be controlled in the ± 1% error range, reducing unnecessary material loss, improve user economic benefits.
B. The volume of filling, can adjust the initial filling to the required volum, and then fine-tuning, you can get the ideal filling machine measurement accuracy.

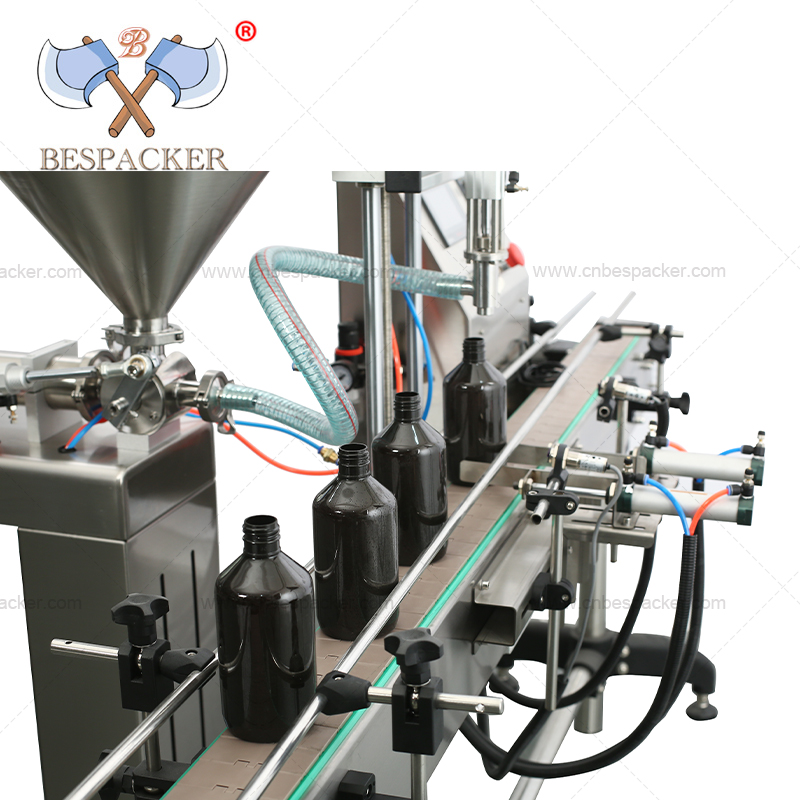

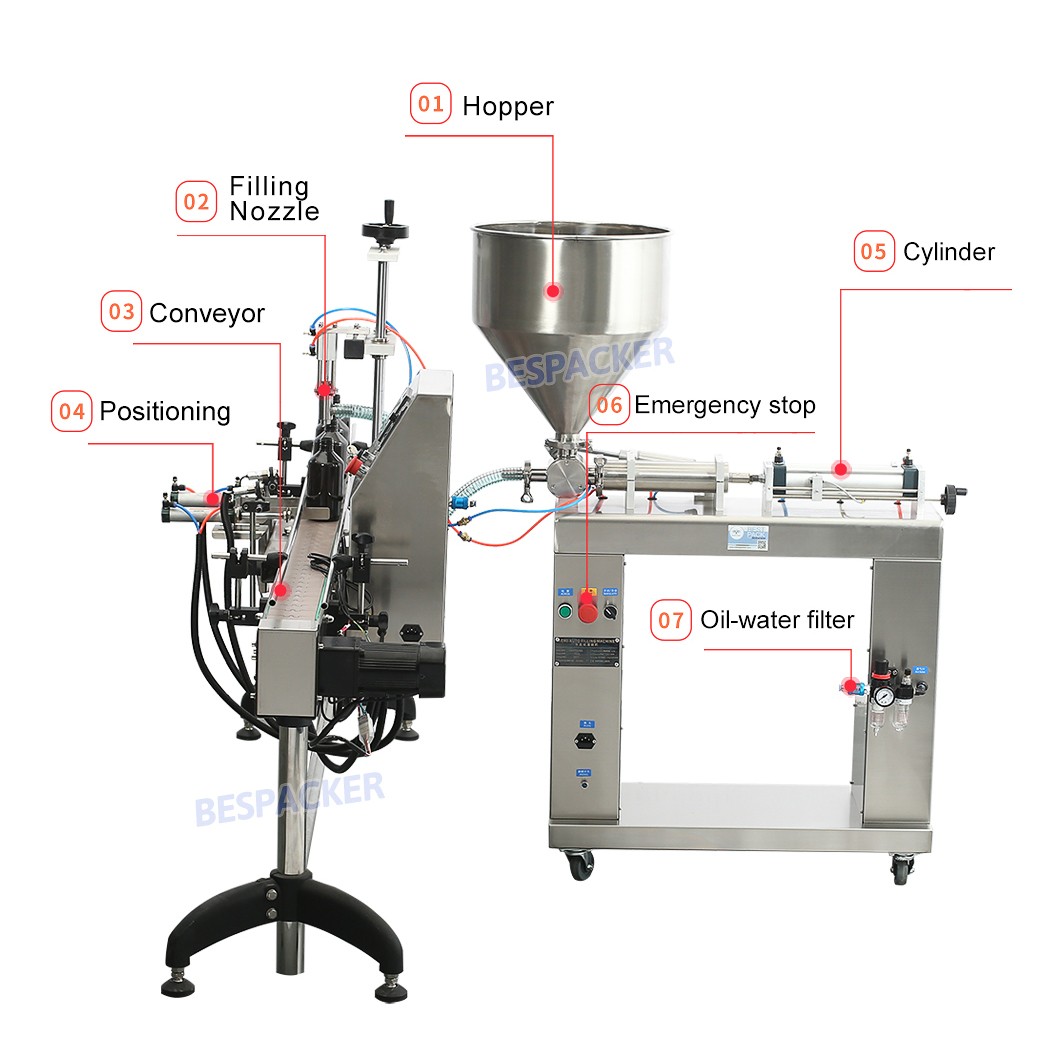

Working principle: table type liquid single head filling machine is a high viscosity flow filling machine developed by our company, it is to extract and made of high viscosity material to drive the three pass principle of a piston and rotary valve through the cylinder, and use magnetic switch to control the cylinder stroke, which can adjust the filling volume.
