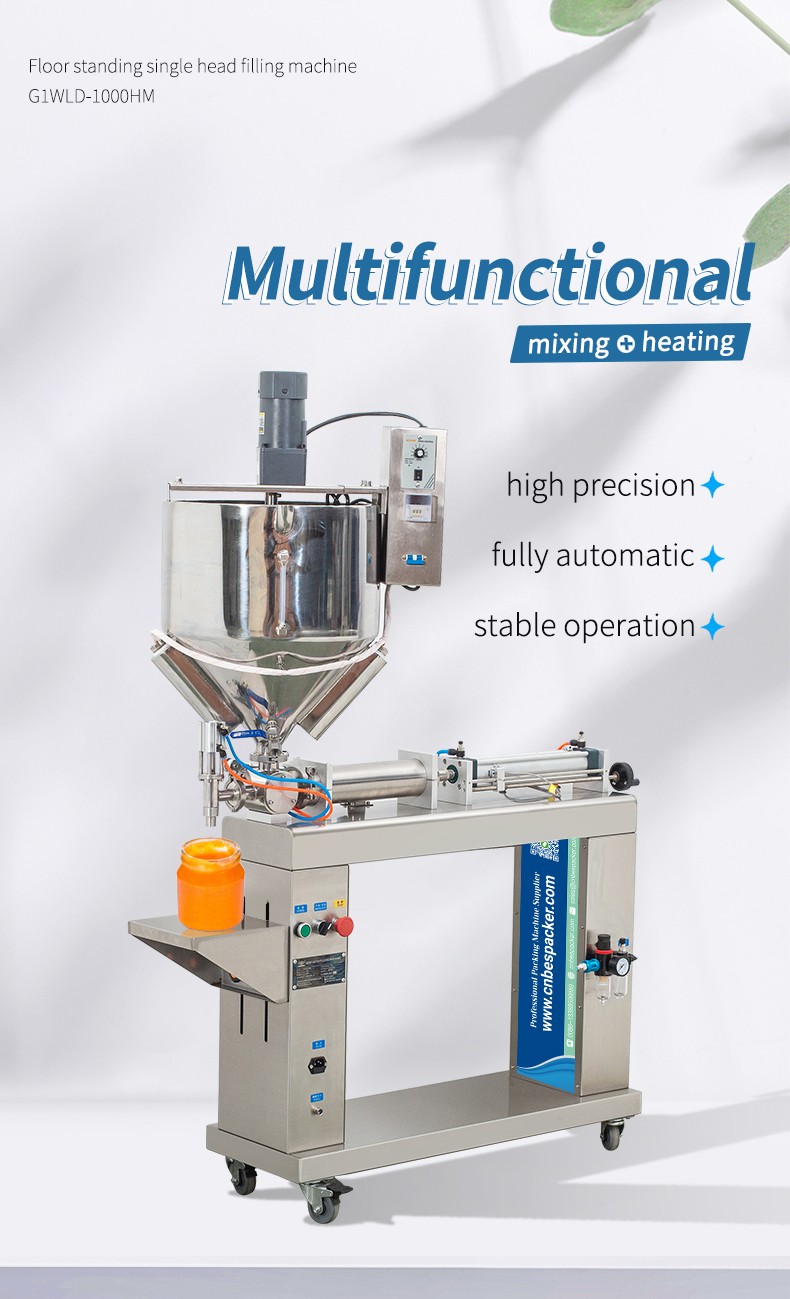

Bespacker G1WLD-1000HM Syrup honey filler with heater mixer

Find best packing machines by genuine supplier of China - Zhejiang Bespacker Machine Co.,Ltd.

关闭

Enter your details and submit

We'll aim to get back to your with a quote within 24hrs

Bespacker machine Manufacturers

Bespacker G1WLD semi-auto paste detergent soap filling machine with heating and mixing function

Description of parameters of filling machine:

Model	Voltage	Filling volume	Filling speed	Dimension	Weight	Type of packages
G1WLD	110V/220V	5-100ml	1-30bottles/min	9745100.5cm	56kg	Plywood boxes
		10-300ml		9655140cm	60kg	Plywood boxes
		50-500ml		9655140cm	60kg	Plywood boxes
		100-1000ml		9655140cm	65kg	Plywood boxes
		500-2500ml		10955138cm	70kg	Plywood boxes
		1000-5000ml		10955138cm	80kg	Plywood boxes

Precise metering control.
Filling machine with fixed flow channel parameters, control the filling time to achieve different measurement of filling.
A. Pneumatic valve filling precise time can be set to 0.01 seconds, the measurement accuracy can be controlled in the ± 1% error range, reducing unnecessary material loss, improve user economic benefits.
B. The volume of filling, can adjust the initial filling to the required volum, and then fine-tuning, you can get the ideal filling machine measurement accuracy.

Working principle: table type liquid single head filling machine is a high viscosity flow filling machine developed by our company, it is to extract and made of high viscosity material to drive the three pass principle of a piston and rotary valve through the cylinder, and use magnetic switch to control the cylinder stroke, which can adjust the filling volume.
